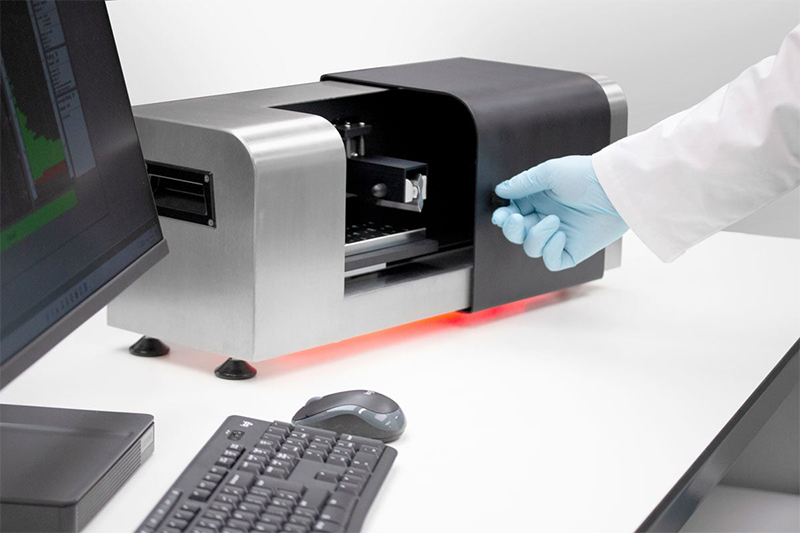

Hegman gauge analyser
Objectively determine particle size in your dispersions.A revolution for particle size analysis
TIDAS automates the analysis of a Hegman gauge to objectively determine fineness of grind, removing operator variation and ensuring reproducibility. Each reading takes less than 20 seconds. If you use a Hegman gauge in your process, you will benefit from TIDAS.Objective rating in seconds
A traditional Hegman test is entirely subjective and prone to human variance. TIDAS captures a raw image of the dispersion which is digitally analysed. The exact number of particles per micron slice are counted, to provide an objective and reproducible reading.- Have confidence in a single reading
- Each reading takes less than 20 seconds
Eliminate costly over-production
Many products from the coatings industry begin life as a powder or pigment. These raw ingredients are ground down to standard which means running costly factory processes. Even small reductions in particle size can take a very long time to achieve. Small variations from human error, can translate to huge wasted costs from unnecessary over processing. Determining the optimum grinding time eliminates this risk.- Determine optimum processing time for pigments and powders
- Eliminate over-processing costs without compromising quality
- Free up factory equipment to continue with other work
Analyse all colours and finishes
TIDAS is compatible with paints, resins, inks, adhesives, battery materials, foods, cosmetics and much more. The TIDAS software is designed to eliminate dust, bubbles and foaming from the dispersion. It can also robustly take readings from clear and metallic materials which are notoriously difficult to rate by eye, owing to the dark field illumination technique used to capture the image.- Robustly analyse clear and metallic materials, notoriously difficult to rate by eye
- Compatible with any liquid sample, making it a key QC tool for various industries
Applicable to many applicationsBattery materials, paints, pigments, inks, resins, sealants, graphene, polymers, cosmetics, food, ceramics, solder pastes, additives, minerals, clear and metallic liquids and much more.
Tried and testedTIDAS was developed over 25 years ago and has gone through several iterations, each honing its performance and reliability. It now operates in over 40 countries for a range of companies including Akzo Nobel, Venator and BASF.
Comply to industry standardsTIDAS regulates testing to improve compliance with industry standards ISO 1524, GB/T1724, ASTM D1210, ASTM D1316, ASTM D1084, ASTM D3333, EN 21524, JIS K 5600-2-5
How does TIDAS work?
Owing to an intelligent but simple design, TIDAS uses a combination of technologies to produce the most precise readings, time and time again.Capture super-sharp images using a line scan camera
The system integrates a high-definition line scan camera, which contributes to the generation of distortion-free images. After the Hegman gauge is automatically drawn down, the system shines a beam of light onto the dispertion to allow the image to be captured.
PPG
“The training was very satisfying and TIDAS is very easy to run. I'm absolutely sure TIDAS will give us better and more reliable results.” — Taís AndradeJunior Process Engineer
